CryoCarrier乾式運輸專用液氮桶
Dry Shipper for Transportation
品牌：
ANTECH
品號：
CryoCarrier 6R / CryoCarrier 10R / CryoCarrier 15R / CryoCarrier 25R
規格：
2ml vail：200支 / 100支 / 400支 / 600支
◆ 符合IATA規範,可用於航空運輸
◆ 乾式保存方式,在運輸過程中不會有液態氮溢出之風險
◆ 可依不同樣品形式選擇相對應的容量與鐵架形式
◆ 選配保護外箱,增加運輸過程中之安全性
◆ 選配溫度記錄器,確實記錄運輸過程中樣品之溫度變化
Maximum Storage Capacity |
|||||||||
|
2ml vail |
200 |
100 |
300 |
500 |
|||||
|
25-place box |
— |
4 |
— |
— |
|||||
|
81/100-place box, 2 inch height |
2 |
— |
3 |
5 |
|||||
|
5ml vail |
— |
50 |
81 |
162 |
|||||
|
81-place box, 3 inch height |
— |
— |
1 |
2 |
|||||
|
Peformance |
|||||||||
|
Container gross capacity, liter |
6 |
10 |
15 |
25 |
|||||
|
LN2 absorbtion, liter |
1.8 |
6 |
6 |
10 |
|||||
|
Static evaporation rate (L/day) |
0.8 |
0.4 |
0.89 |
0.89 |
|||||
|
Vapor working duration (day) |
2 |
15 |
7 |
11 |
|||||
|
Dimensions |
|||||||||
|
Neck Opening (mm) |
190 |
125 |
216 |
216 |
|||||
|
External diameter (mm) |
252 |
300 |
396 |
396 |
|||||
|
Overall height (mm) |
519 |
584 |
610 |
741 |
|||||
|
Weight empty (kg) |
7.2 |
8.5 |
16.0 |
22.0 |
|||||
|
Weight charged, vapor (kg) |
8.7 |
13.4 |
20.9 |
31.8 |
|||||
|
Accessories |
|||||||||
|
Protection trolley case, optional |
DSC-6 |
DSC-10 |
DSC-15 |
DSC-25 |
|||||
|
Data logger, optional |
200X, 200XB |
||||||||
-

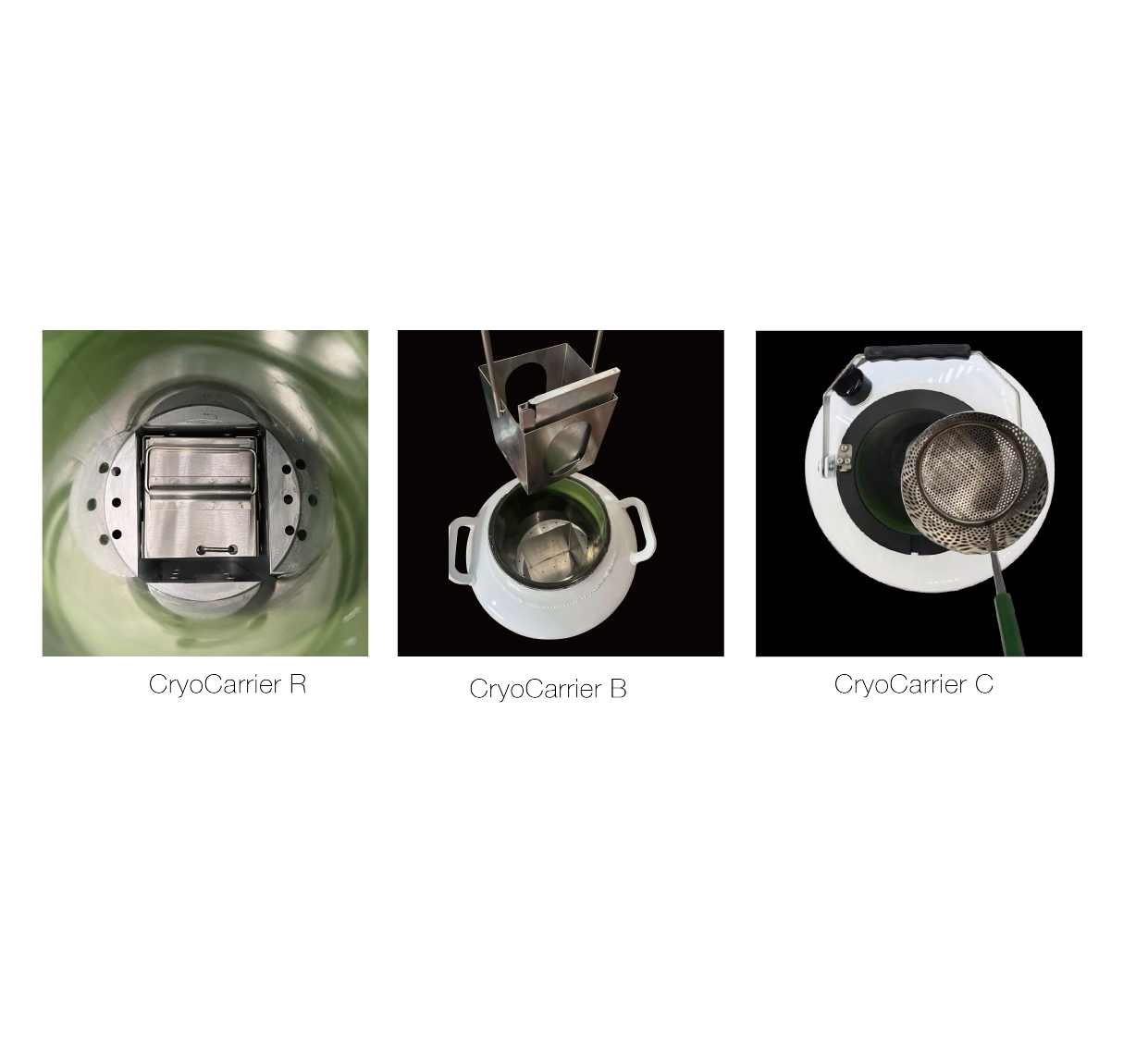

三種層架型式可供選擇
-

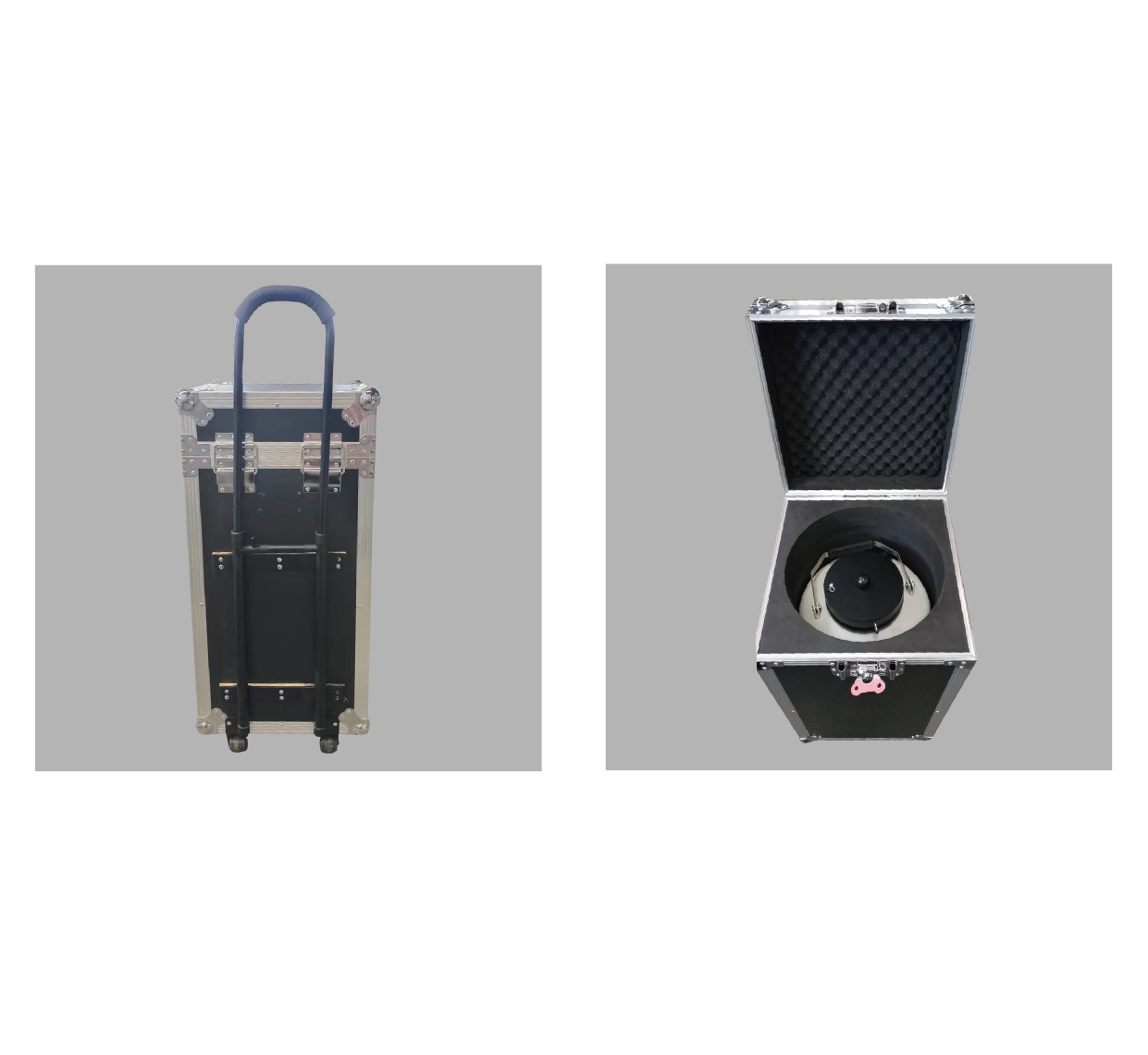

Protective Trolley Case
-

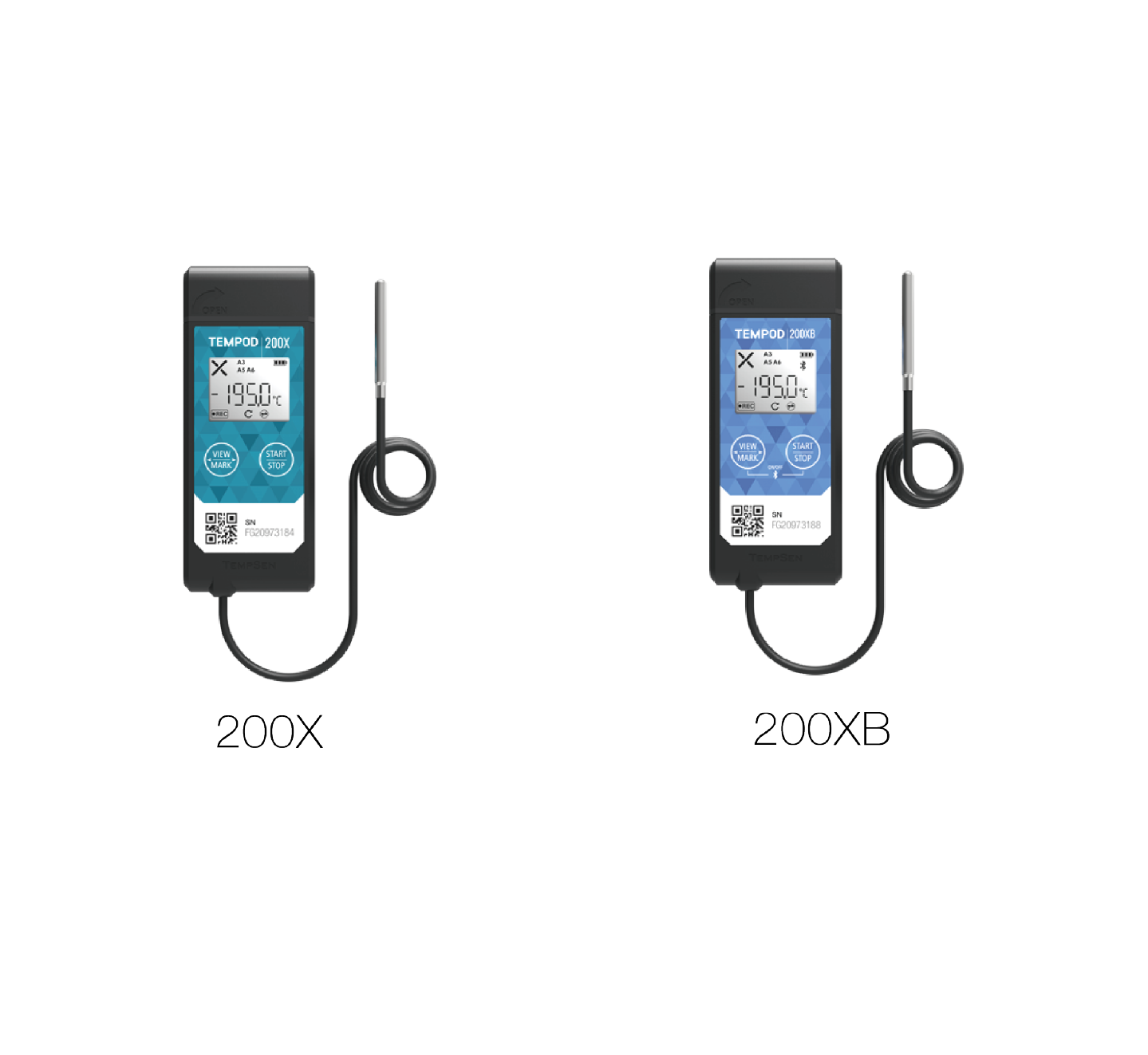

Smart Data Logger
