CryoPump 1000M
-

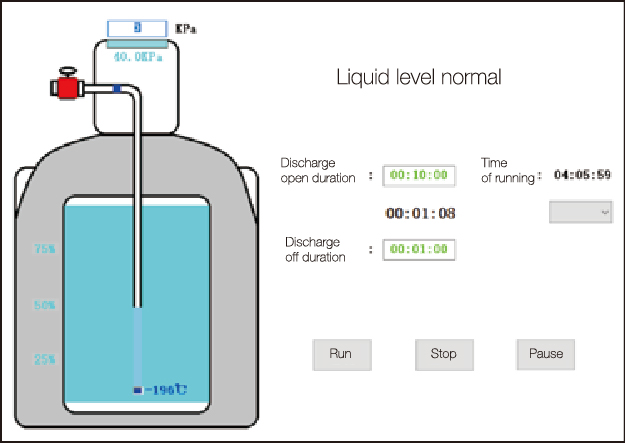

CryoPump 2000A
Working principle
|
Model |
CryoTrans 3 |
CryoTrans 6 |
CryoTrans 10 |
CryoTrans 16 |
CryoTrans 20 |
CryoTrans 30 |
CryoTrans 35 |
CryoTrans 35P |
CryoTrans 50 |
|
Performancce |
|||||||||
|
LN2 capacity (L) |
3 |
6 |
10 |
16 |
20 |
30 |
35 |
35 |
50 |
|
Neck diameter (mm) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Static evaporation rate (L/day) |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
0.15 |
0.23 |
|
Dimensions |
|||||||||
|
Overall height (mm) |
441 |
468 |
546 |
618 |
668 |
661 |
760 |
580 |
757 |
|
Outer diameter (mm) |
224 |
300 |
300 |
396 |
396 |
451 |
451 |
508 |
508 |
|
Weight empty (KG) |
3.5 |
4.8 |
6.5 |
11 |
12 |
16 |
16.4 |
18 |
21 |
|
Weight full (KG) |
6 |
10 |
15 |
22 |
28 |
40 |
45 |
46 |
62 |
|
Accessories |
|||||||||
|
KF 50 connection |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
|
Roller base (Optional) |
— |
— |
— |
— |
— |
RB-30 |
RB-30 |
RB-30 |
RB-47 |
|
LN2 dispenser (Optional) |
— |
— |
CryoPump 1000M (manual) |
CryoPump 1000M (manual); CryoPump 2000A (auto) |
|||||
|
LN2 dipper |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
