◆ 超低液氮消耗
|
Model |
CryoCenter 200M |
CryoCenter 240M |
CryoCenter 300M |
CryoCenter 500M |
|
Liquid nitrogen capacity (L) |
200 |
240 |
300 |
500 |
|
Infusion volumes (L/min) |
≥10 |
≥10 |
≥10 |
≥10 |
|
Static evaporation (％)* |
0.8 |
0.6 |
0.8 |
0.8 |
|
Overall height (mm) |
1280 |
1580 |
1410 |
1500 |
|
External diameter (mm) |
656 |
656 |
806 |
958 |
|
Weight empty/full (kg) |
96/259 |
130/325 |
205/449 |
265/672 |
|
Standard working pressure (psig/bar/MPa) |
13/0.9/0.09 |
13/0.9/0.09 |
13/0.9/0.09 |
13/0.9/0.09 |
|
Relief valve pressure (psig/bar/MPa) |
14/0.97/0.097 * 1pc + 22/1.5/0.15 * 1pc |
|||
|
Bursting disc burst pressure (psig/bar/MPa) |
51/3.5/0.35 |
51/3.5/0.35 |
51/3.5/0.35 |
51/3.5/0.35 |
|
Pressure gauge indicating range (MPa) |
0～0.25 |
0～0.25 |
0～0.25 |
0～0.25 |
|

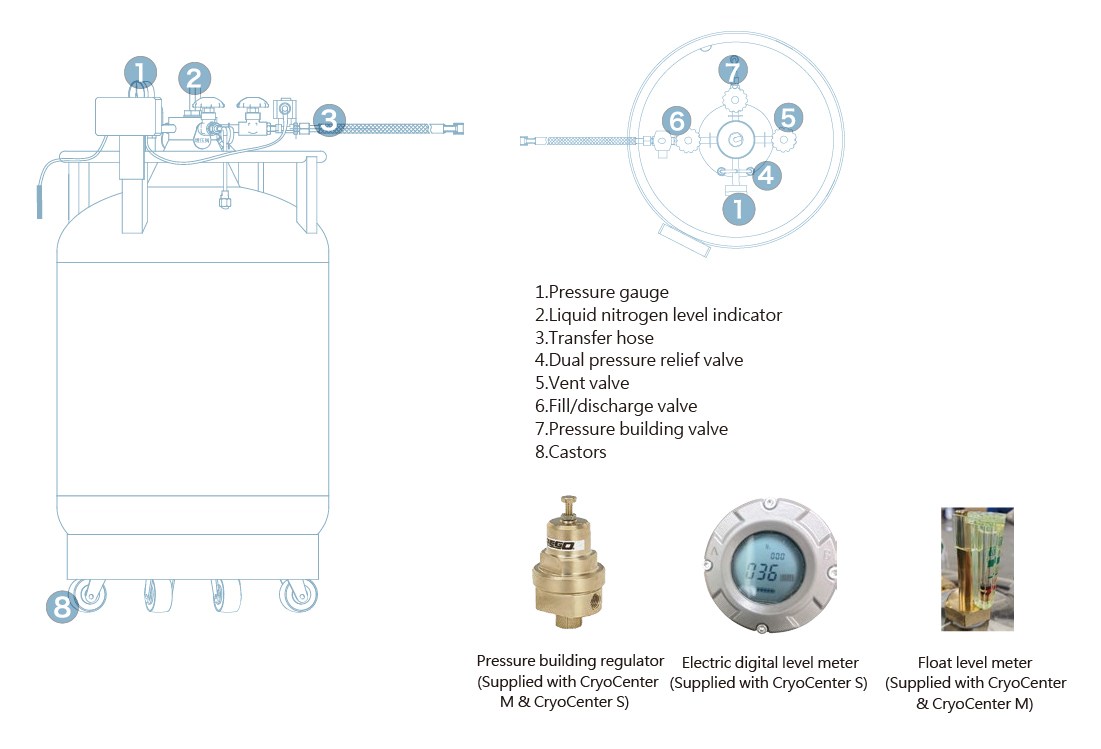

Fill/discharge valve, vent valve, pressure building valve |
Yes |
Yes |
Yes |
Yes |
|
Pressure building regulator |
Yes |
Yes |
Yes |
Yes |
|
Pressure relief value (Safety valve) |
Yes, 2 pcs |
Yes, 2 pcs |
Yes, 2 pcs |
Yes, 2 pcs |
|
Liquid level meter, float type |
Yes |
Yes |
Yes |
— |
|
Liquid level meter, electronic digital display type |
— |
— |
— |
Yes |
|
Connection port |
CGA295 |
CGA295 |
CGA295 |
CGA295 |
|
Caster & hose (2 meter) |
Yes |
Yes |
Yes |
Yes |
